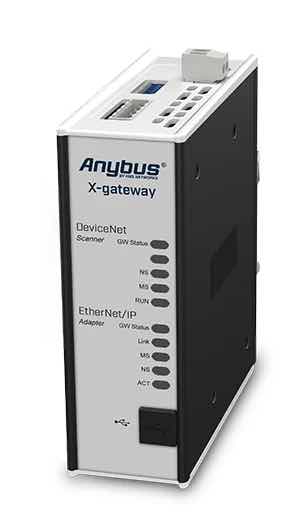

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between DeviceNet and EtherNet/IP networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Scanner on DeviceNet network and an Adapter on the EtherNet/IP network. The data transmission is completely transparent with a maximum data capacity of 512 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O

• Fast copying of cyclic I/O data between the two networks (10-15 ms)
• Proven and tested with all PLC manufacturers
• Powerful Scanner interface eliminates the need for a PLC controller on the DeviceNet network
• Supports up to a maximum of 512 bytes of Input and Output data in each direction
• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
• Optional control status information added to I/O data for diagnostic purposes
• Robust stand-alone housing for use in harsh industrial environments
• Global free technical support and consultancy
• Additional version available with CIP Routing feature between EtherNet/IP and DeviceNet. (AB7607)

An Anybus X-gateway with an integrated DeviceNet Scanner interface can be used when there is no existing DeviceNet controlling PLC.

• DeviceNet CONFORMANCE TESTED™ by ODVA
• DeviceNet Specification version: Communications Adapter profile 12
• Supports up to 63 DeviceNet Adapter/Slaves
• Max. 512 bytes of Input and 512 bytes of Output data
• Optional Live List of the active status of the connected adapters
• DeviceNet baudrate 125, 250, 500 kbit/s
• Supports I/O Slave messaging: Bit strobe, Polling, Cyclic and COS
• MacID node address setting via DIP switches
• 1x 5-pin, 5.08 Phoenix plug connector

EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• EtherNet/IP CONFORMANCE TESTED™ by ODVA
• EtherNet/IP Level 2 I/O Server CIP
• 10/100Mbit operation in full or half-duplex
• Max. 509 bytes Input and 505 bytes Output data
• Device Level Ring (DLR) functionality available (announce-based ring participant)
• Integrated FTP server provides easy file management using standard FTP clients.
• Web server with dynamic data capability and Server Side Include (SSI) capability
• Email client with dynamic data capability and Event-triggered email handling
• Per-user security framework
• Quality of Service (QoS) available
• DNS Capability
• TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
• Integrated switch allowing for a daisy-chain topology
• 2x RJ-45 EtherNet/IP ports available simultaneously

TECHNICAL SPECIFICATIONS
