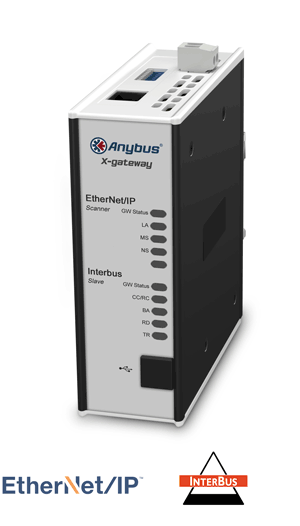

EtherNet/IP Scanner - Interbus CU Slave - AB7676-F

Giá bán: Liên hệ

Mã sản phẩm: AB7676-F

Thương hiệu: HMS

Tình trạng: Còn hàng

Ordering Information

ORDER CODE: AB7676-F

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- Anybus OPC server software available for download
- (Power supply not included)

    Tư vấnhotline0965746247

    Anybus X-gateway – EtherNet/IP Scanner - Interbus FO Slave

    The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between EtherNet/IP and Interbus Fiber Optic networks.

    FAST COPYING OF I/O DATA

    The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Scanner on the EtherNet/IP network and a Slave on the Interbus network. The data transmission is completely transparent with a maximum data capacity of 512 bytes in each direction.

    EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

    The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

    Features and benefits

    • Fast copying of cyclic I/O data between the two networks (10-15 ms)
    • Proven and tested with all PLC manufacturers
    • Powerful Scanner interface eliminates the need for a PLC controller on the EtherNet/IP network
    • Supports up to a maximum of 512 bytes of Input and Output data in each direction
    • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
    • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
    • Optional control status information added to I/O data for diagnostic purposes
    • Robust stand-alone housing for use in harsh industrial environments
    • Global free technical support and consultancy

    EtherNet/IP Scanner/Master interface

    An Anybus X-gateway with an integrated EtherNet/IP Scanner interface can be used when there is no existing EtherNet/IP controlling PLC. The X-gateway will perform EtherNet/IP Scanner functions.

      • EtherNet/IP CONFORMANCE TESTED™ by ODVA
      • Connects up 64 EtherNet/IP Adapter/Slaves
      • 10/100Mbit operation in full or half-duplex
      • Max. 509 bytes Input and 505 bytes Output data
      • Optional Live List of the active status of the connected adapters
      • Integrated FTP server provides easy file management using standard FTP clients.
      • Web server with dynamic data capability and Server Side Include (SSI) capability
      • Email client with dynamic data capability and Event-triggered email handling
      • Support for CIP Objects
      • DNS Capability
      • TCP/IP settings via on-board DIP switches, DHCP/ARP/Anybus IPconfig (HICP)
      • EtherNet/IP Scanner/Adapter network configuration via in-built web interface or RSLogix/Studio5000 software
      • 1x RJ-45 Ethernet port

      Interbus Fiber Optic Slave Interface

      Interbus Slave address settings can are automatically detected by the controlling PLC.

      • Complete Interbus functionality according to EN 50170
      • Fiber Optic features FSMA standard connectors conforming to IEC874-2 and DIN47258
      • Based on OPC chipset with support for optical diagnostics
      • Transmission Media: Plastic fibre, core 180um, clad 1000um: HCS (glass) fibre, core 200um, clad 230 um
      • Max. 20 bytes of process data (512 bytes with PCP) in each direction
      • PCP V.2.0. (0, 1, 2, or 4 words)
      • Interbus baudrate 500 kbit/s – 2 Mbit/s
      • Automatic slave address detection by controlling PLC master
      • 1x HFBR-2505C and 1x HFBR-1505C Fiber Optic network connectors

      Technical specifications

      Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
      Weight 400g or 0,880 lbs
      Operating temperature -25 to +65 °C  or  -13 to +149 °F
      Storage temperature -40 to +85 °C  or  -40 to +185 °F
      Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
      Current consumption     max. 400mA (Typical 200mA)
      Enclosure material  Aluminium and plastic
      Installation position Vertical / Flat*
      Galvanic isolation YES, on both BUS/Ethernet side
      Mechanical rating IP20, NEMA rating 1
      Mounting DIN-rail (EN 50022 standard)
      I/O configuration via USB port with Anybus Configuration Manager software
      Certifications CE, CULUSRoHS
