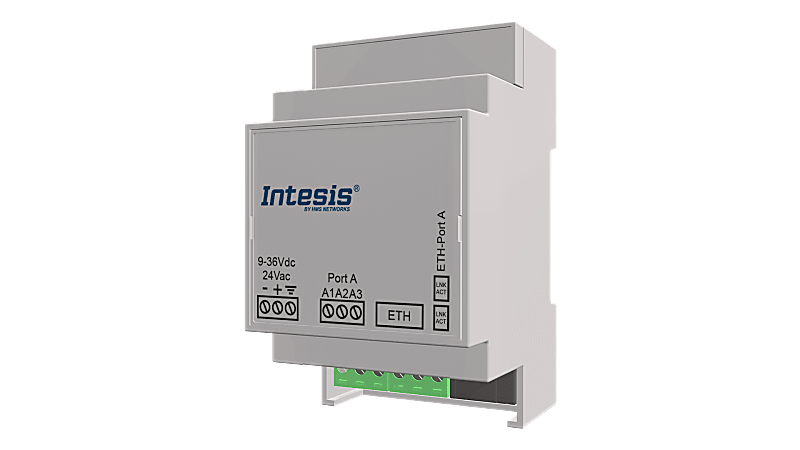

INMBSRTR0320000 Modbus RTU to Modbus TCP Router - Intesis

Giá bán: Liên hệ

Mã sản phẩm: INMBSRTR0320000

Thương hiệu: Intesis - HMS Industrial Networks

Tình trạng: Còn hàng

Item number: INMBSRTR0320000

Tư vấnhotline0965746247

Modbus RTU to Modbus TCP Router

Item number INMBSRTR0320000

Integrate devices in a Modbus RTU network with a Modbus TCP network transparently with our compact Modbus Router. This integration aims to make Modbus RTU devices, registers, and resources accessible to a Modbus TCP client BMS or controller.

Features and benefits

  • Up to six concurrent Modbus TCP clients supported The gateway supports up to six simultaneous Modbus TCP clients.
  • Easy integration with Intesis MAPS The integration process is quickly and easily managed using the Intesis MAPS configuration tool.
  • Commissioning-friendly approach with Intesis MAPS Templates can be imported and reused as often as needed, significantly reducing commissioning time.
  • Up to 32 full-load RTU devices supported The gateway supports up to 32 simultaneous full-load RTU devices.
  • Modbus diagnostic signals available Modbus diagnostic signals are available in both Intesis MAPS and also as Modbus registers.

Technical specifications

  • Content of Delivery
  • Intesis gateway and installation manual.
  • Not Included (in delivery)
  • Power supply not included.
  • Net Width (mm): 53 mm
  • Net Height (mm): 58 mm
  • Net Depth (mm): 93 mm
  • Net Weight (g): 240 g
  • Mounting: DIN rail mount (bracket included)
  • Input Voltage (V): 9-36 VDC / 24 VAC / 50-60 Hz / 0.140 A / 1.7 W
  • Power Connector: 3-pole
  • Operating Temperature °C Min: 0 °C
  • Operating Temperature °C Max: 60 °C
  • Housing Materials: Plastic
  • Packaging Material: Cardboard



  • CE: Yes
  • UL: Yes
  • KC: Yes
  • WEEE Category: IT and telecommunications equipment
  • CB: Yes
  • UKPSTI: Yes
  • ETIM Classification: EC001604

  • Connectors / Input / Output
  • Power supply, EIA-485, Ethernet.
  • Contains Battery
  • No
