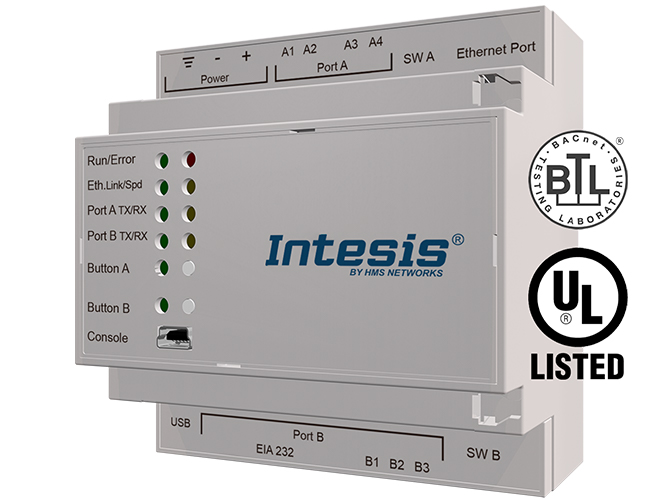

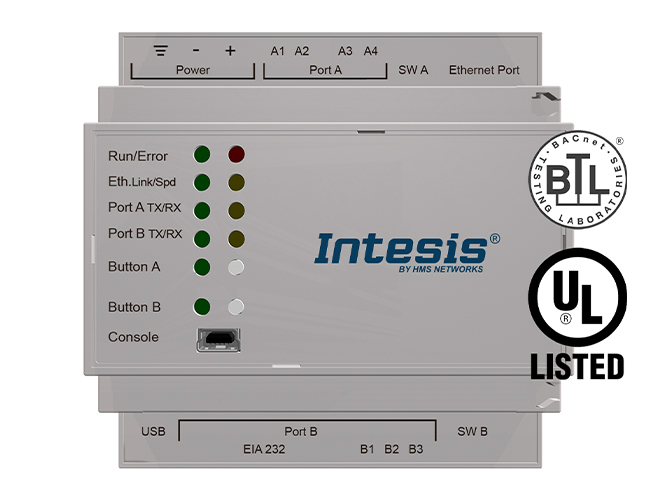

INBACDAL1280200 - DALI to BACnet IP Server Gateway - 2 channels

Giá bán: Liên hệ

Mã sản phẩm: INBACDAL1280200

Thương hiệu: Intesis - HMS Industrial Networks

Tình trạng: Hết hàng

ORDER CODES:

INBACDAL1280200 - DALI to BACnet IP Server Gateway - 2 channels





Tư vấnhotline0965746247

INBACDAL1280200 - DALI to BACnet IP Server Gateway - 2 channels

Integrate any DALI/DALI-2 driver and DALI-2 light sensor, or occupancy sensor with a BACnet BMS or any BACnet IP or BACnet MS/TP controller. The aim of this integration is to make DALI devices and its data and resources accessible from a BACnet based control system or device, as if it was a part of the own BACnet system and vice-versa.

FEATURES:

  • UL Certified
  • BTL Certified
  • DALI-2 certified
  • Support for BACnet IP Client and MSTP Master
  • BACnet Advanced features available (Trend logs, Calendars, etc.)
  • Support for DALI & DALI-2 drivers and DALI-2 sensors
  • Integrated DALI power supply
  • Up to 2 DALI channels
  • Up to 64 drivers/ballasts + 16 DALI-2 sensors per channel (Guaranteed DALI supply: 235mA)
  • Easy integration & DALI commissioning with Intesis MAPS

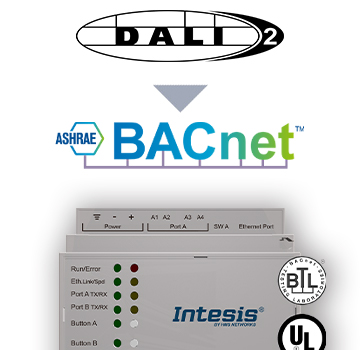

Use Case

Integration of DALI drivers and sensors into a BACnet installation.

dali-2-bacnet-use-case

Description

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

The BTL mark ensures 100% compatibility and, at the same time, guarantees a seamless integration with any BACnet device.

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

Technical Documentation

User Manual General information about this product Download
Installation Manual INBACDAL0640200 Learn how to install the device in your project Download
Installation Manual INBACDAL1280200 Learn how to install the device in your project Download
Datasheet Find all the specifications around this product Download
DALI-2 Certification INBACDAL0640200 Check the product certification Download
DALI-2 Certification INBACDAL1280200 Check the product certification Download
BTL Certification Check the product certification Download
EC Declaration of Conformity INBACDAL0640000 Check the product certification Download
EC Declaration of Conformity INBACDAL1280000 Check the product certification Download
KC Certification Check the product KC Certification Download

Programming Tools

Intesis MAPS Configuration software tool Download
User Manual for BACnet General information about Intesis MAPS for BACnet projects Download

 Commercial Documentation

Intesis Brochure Know more about the Intesis current available products Download
