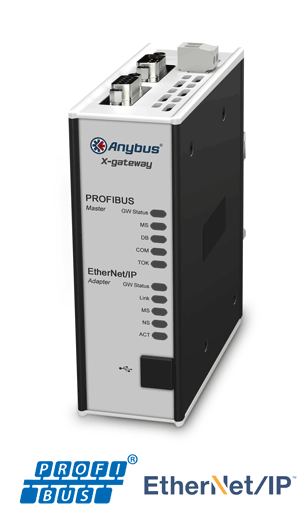

    Anybus X-gateway - PROFIBUS Master - EtherNet/IP Adapter

    The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between PROFIBUS and EtherNet/IP networks.

    FAST COPYING OF I/O DATA

    The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Master on the PROFIBUS network and as an Adapter on the EtherNet/IP network. The data transmission between the two networks is completely transparent, with a maximum data capacity of 512 bytes in each direction.

    EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

    The connection between the two networks is qucikly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.AB7800

    Features and benefits

    • Fast copying of cyclic I/O data between PROFIBUS and EtherNet/IP networks (10-15 ms)
    • Connected in minutes through a simple configuration. No programming required
    • Proven and tested with all PLC manufacturers
    • Powerful Master interface eliminates the need for a PLC controller on the PROFIBUS network
    • Supports up to a maximum of 512 bytes of Input and Output data in each direction
    • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
    • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
    • Optional control status information added to I/O data for diagnostic purposes
    • Robust stand-alone housing for use in harsh industrial environments
    • Global free technical support and consultancy

    PROFIBUS Master/Scanner interface

    An Anybus X-gateway with an integrated PROFIBUS Master interface can be used when there is no existing PROFIBUS controlling PLC.

    • Complete Profibus DP Master functionality according to IEC 61158
    • Controls up to 125 slaves
    • Optional Live List of the active status of the connected slaves (max 64 slaves)
    • Maximum 512 bytes of I/O data in each direction
    • Supports all baudrates up to 12Mbit/s
    • Supports multiple masters (token passing)
    • Profibus Master/Slave configuration via the included Anybus Configuration Manager Windows tool via an RS-232 configuration port
    • 1x D-Sub9 Male and 1x D-Sub9 Female connector

    EtherNet/IP Adapter/Slave interface

    EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

      • EtherNet/IP CONFORMANCE TESTED™ by ODVA
      • EtherNet/IP Level 2 I/O Server CIP
      • 10/100Mbit operation in full or half-duplex
      • Max. 509 bytes Input and 505 bytes Output data
      • Device Level Ring (DLR) functionality available (announce-based ring participant)
      • Integrated FTP server provides easy file management using standard FTP clients.
      • Web server with dynamic data capability and Server Side Include (SSI) capability
      • Email client with dynamic data capability and Event-triggered email handling
      • Per-user security framework
      • Quality of Service (QoS) available
      • DNS Capability
      • TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
      • Integrated switch allowing for a daisy-chain topology
      • 2x RJ-45 EtherNet/IP ports available simultaneously

      Technical specifications

      Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
      Weight 400g or 0,880 lbs
      Operating temperature -25 to +65 °C  or  -13 to +149 °F
      Storage temperature -40 to +85 °C  or  -40 to +185 °F
      Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
      Current consumption     max. 400mA (Typical 200mA)
      Enclosure material  Aluminium and plastic
      Installation position Vertical / Flat*
      Galvanic isolation YES, on both BUS/Ethernet side
      Mechanical rating IP20, NEMA rating 1
      Mounting DIN-rail (EN 50022 standard)
      I/O configuration via USB port with Anybus Configuration Manager software
      Certifications CE, CULUSRoHS
