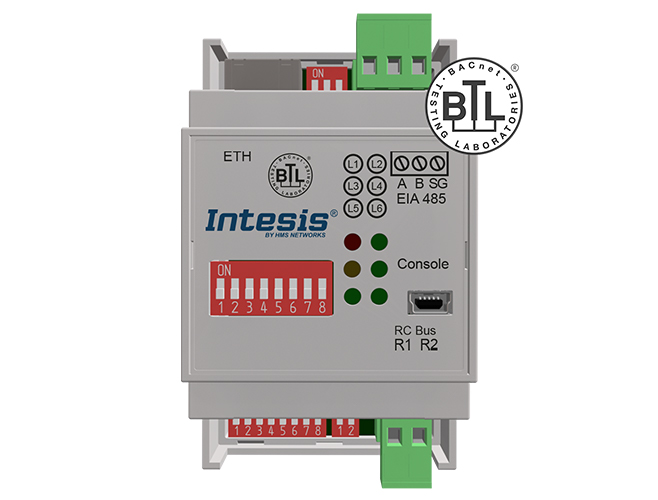

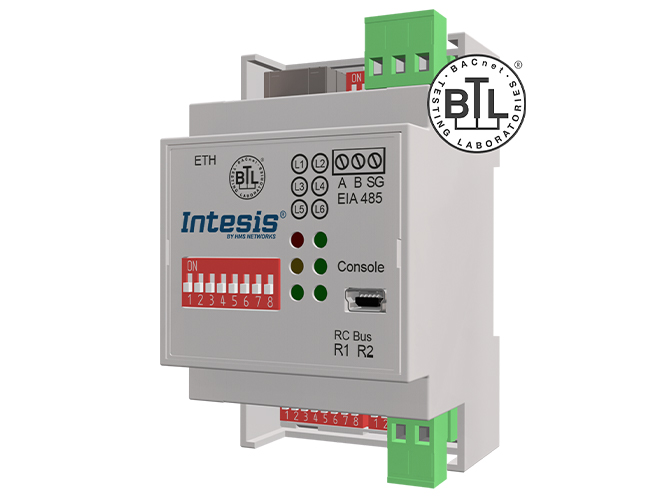

Panasonic ECOi and PACi systems to BACnet IP/MSTP Interface

The Panasonic-BACnet gateway allows fully bi-directional communication between Panasonic ECOi and PACi Air Conditioner units and BACnet IP or MSTP networks.

FEATURES

• BTL mark ensures full interoperability with BACnet devices.
• Support BACnet IP and BACnet MS/TP.
• Configuration from onboard DIP-switches.
• IP settings available in a web interface.
• Quick and easy installation (plug and set the DP-SW).
• External power not required.
• Simultaneous control of the AC unit by the IR remote controller and by BACnet IP or MS/TP.
• Reduced dimensions 93 x 53 x 58 mm.
• Mountable on DIN rail, wall, or even inside the indoor unit in some models of AC.
• Abstraction of Air Conditioning unit properties and functionalities as fixed BACnet Objects.
• Occupancy function allows energy savings. Costs related to HVAC systems in a building are one of the highest and this type of functions allow to reduce them.
• Total control and monitoring of the AC unit from BACnet, including AC unit’s internal variables, running hours counter (for filter maintenance control) and error indication.

Use Case

Integration of Panasonic ECOi & PACi systems into a BACnet installation.

Description

DIRECT CONNECTION TO INDOOR UNITS

The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint…but the monitoring of errors, alarms and some internal variables.

FAST AND EASY TO SET UP BY DIP-SW

The product can be installed and set up in a really short time. It’s only a matter of wiring the gateway to the AC unit and configure the DIP-SW accordingly. No configuration software and no power supply are required.

The consistent Modbus register mapping used for all AC brands, helps improving the integration time of each project.

Technical Documentation

Programming Tool

Case Study

Commercial Documentation

HVAC Compatibility

Ensure the compatibility of this gateway with your AC model by visiting https://compatibility.intesis.com/

Compatible AC models

WH-ADC0309H3E5 | WH-ADC1216H6E5 | WH-ADC0916H9E8 | WH-ADC0309H3E5UK | WH-ADC1216H6E5UK | WH-SDC03H3E5-1 | WH-SDC05H3E5-1 | WH-SDC07H3E5-1 | WH-SDC09H3E5-1 | WH-SDC12H6E5 | WH-SDC16H6E5 | WH-SDC09H3E8 | WH-SDC12H9E8 | WH-SDC16H9E8 | WH-SXC09H3E5 | WH-SXC12H6E5 | WH-SXC09H3E8 | WH-SXC12H9E8 | WH-SXC16H9E8 | WH-SQC09H3E8 | WH-SQC12H9E8 | WH-SQC16H9E8 | WH-MDC05H3E5 | WH-MDF07H3E5 | WH-MDF09H3E5 | WH-MDC12H6E5 | WH-MDC16H6E5 | WH-MXC09H3E5 | WH-MXC12H6E5 | WH-MXC09H3E8 | WH-MXC12H9E8 | WH-MXC16H9E8 | WH-UD03HE5-1 (outdoor) | WH-UD05HE5-1 (outdoor) | WH-UD07HE5-1 (outdoor) | WH-UD09HE5-1 (outdoor) | WH-UD12HE5 (outdoor) | WH-UD16HE5 (outdoor) | WH-UD09HE8 (outdoor) | WH-UD12HE8 (outdoor) | WH-UD16HE8 (outdoor) | WH-UX09HE5 (outdoor) | WH-UX12HE5 (outdoor) | WH-UX09HE8 (outdoor) | WH-UX12HE8 (outdoor) | WH-UX16HE8 (outdoor) | WH-UQ09HE8 (outdoor) | WH-UQ12HE8 (outdoor) | WH-UQ16HE8 (outdoor)

* The asterisks stand for any character in the asterisk' position.
