PROFINET - BACnet IP & MS/TP Server Gateway

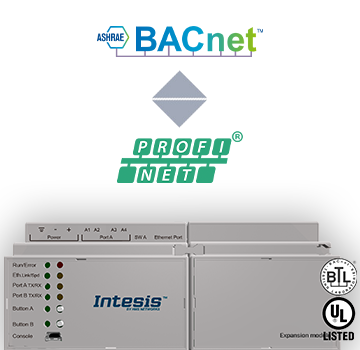

The Intesis BACnet-PROFINET gateway allows you to seamlessly inter-connect PLC/BMS systems and their connected devices between BACnet IP&MSTP Control systems and PROFINET networks.
This gateway works as a BACnet slave/server on the BACnet side and as a PROFINET I/O device on the PROFINET side.

FEATURES

UL Certified.
BTL Certified.
Support for BACnet IP or BACnet MSTP.
BACnet Advanced features available (Trend logs, Calendars, etc.).
PROFINET-IO Device interface.
Easy integration into a controlling PROFINET PLC thanks to its .GSDML and TAG files.
Supports up to a maximum of 500 bytes of Input and Output data.
Smooth integration & updates with Intesis MAPS.

Use Case

Integration of a PROFINET network with a BACnet installation

Description

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

The BTL mark ensures 100% compatibility and, at the same time, guarantees a seamless integration with any BACnet Client.

At the same time, its PROFINET-IO interface enables communication with a PROFINET PLC, ensuring robust data transmission between BACnet and PROFINET networks.

The configuration is carried out using Intesis MAPS. This PC-based software allows system integrators to define the required settings for the device, using predefined templates and diagnostic tools to save time and perform robust integrations.
