AS-Interface Master - EtherCAT Slave - AB7698-F

Giá bán: Liên hệ

Mã sản phẩm: AB7698-F

Thương hiệu: HMS

Tình trạng: Còn hàng

Ordering Information

ORDER CODE: AB7698-F

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- Anybus OPC server software available for download
- (Power supply not included)

    Tư vấnhotline0965746247

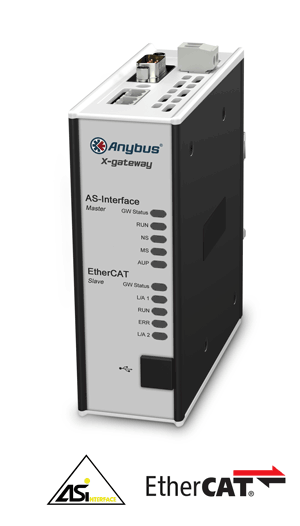

    Anybus X-gateway - AS-Interface Master - EtherCAT Slave

    The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between AS-Interface and EtherCAT networks.

    FAST COPYING OF I/O DATA

    The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Master on AS-Interface network and an Slave on the EtherCAT network. The data transmission is completely transparent with a maximum data capacity of 512 bytes in each direction.

    EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

    The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

      Features and benefits

      • Fast copying of cyclic I/O data between the two networks (10-15 ms)
      • Proven and tested with all PLC manufacturers
      • Powerful Master interface eliminates the need for a PLC controller on the AS-Interface network
      • Supports up to a maximum of 512 bytes of Input and Output data in each direction
      • Optional control status information added to I/O data for diagnostic purposes
      • Robust stand-alone housing for use in harsh industrial environments
      • Global free technical support and consultancy

      AS-Interface Master Interface

      An Anybus X-gateway with an integrated AS-Interface M4 Master interface can be used when there is no existing AS-Interface controlling PLC.

      • Complies to AS-Interface 3.0 specification
      • Controls up to 62 AS-Interface slaves
      • Optional Live List of the active status of the connected slaves
      • Supports Combined Transaction Types 1, 2, 3, 4 and 51
      • Up to 248 digital inputs and 186 digital outputs
      • Up to 124 (16-bit) analog values
      • AS-Interface baudrate 167 kbit/s
      • Synchronous I/O (optional)
      • On-board configuration button
      • 1x D-sub 9-pin male connector (RS-232) for terminal-based monitoring and configuration
      • 2x 2-pin 5,08 Phoenix plug connectors

      EtherCAT Slave interface

      EtherCAT Slave settings can be made by importing the provided .XML file into engineering tool of the controlling PLC.

      • Complete EtherCAT slave according to DS 301 V4.022
      • Supports CANopen over EtherCAT
      • Max 512 bytes of Input and 512 bytes of Output data (PDO + SDO)
      • Baudrate 100 Mbit/s full duplex
      • 4 FMMU channels (can be used freely by the EtherCAT master for any purpose.)
      • 4 SM channels
      • Bit-oriented FMMU operation
      • Position addressing, node addressing and logical addressing
      • PDI Watchdog
      • Output I/O Sync Manager Watchdog
      • Integrated switch allowing for a daisy-chain topology
      • 2x RJ45 EtherCAT connectors

      Technical specifications

      Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
      Weight 400g or 0,880 lbs
      Operating temperature -25 to +65 °C  or  -13 to +149 °F
      Storage temperature -40 to +85 °C  or  -40 to +185 °F
      Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
      Current consumption     max. 400mA (Typical 200mA)
      Enclosure material  Aluminium and plastic
      Installation position Vertical / Flat*
      Galvanic isolation YES, on both BUS/Ethernet side
      Mechanical rating IP20, NEMA rating 1
      Mounting DIN-rail (EN 50022 standard)
      I/O configuration via USB port with Anybus Configuration Manager software
      Certifications CE, CULUSRoHS
