Modbus Plus Slave - POWERLINK Device - AB7539-F

Giá bán: Liên hệ

Mã sản phẩm: AB7539-F

Thương hiệu: HMS

Tình trạng: Còn hàng

Ordering Information

ORDER CODE: AB7539-F

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- Anybus OPC server software available for download
- (Power supply not included)

    Tư vấnhotline0965746247

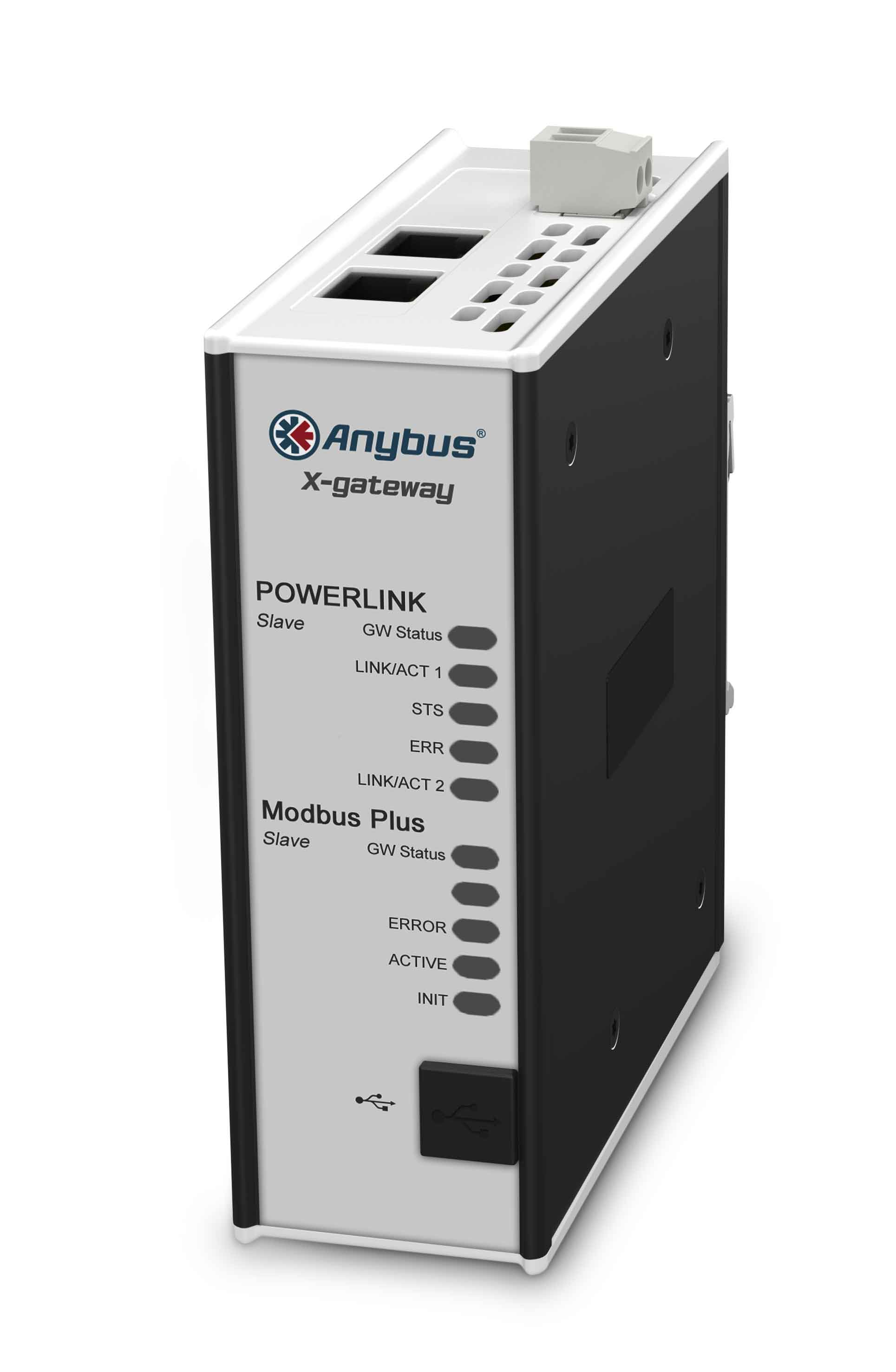

    Anybus X-gateway - Modbus Plus Slave - POWERLINK Device

    The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between Modbus Plus and POWERLINK networks.

    FAST COPYING OF I/O DATA

    The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Slave/Device on both networks. The data transmission is completely transparent with a maximum data capacity of 254 bytes in each direction.

    EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

    The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

    Features and benefits

    • Fast copying of cyclic I/O data between the two networks (10-15 ms)
    • Supports up to a maximum of 512 bytes of PDO + SDO Input and Output data in each direction
    • Supports up to a maximum of 254 bytes of PDO Input and Output data in each direction
    • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
    • Optional control status information added to I/O data for diagnostic purposes
    • Robust stand-alone housing for use in harsh industrial environments
    • Global free technical support and consultancy

    Modbus Plus Slave Interface

    Modbus Plus address settings made via on-board DIP switches

    • Complete Modbus Plus slave functionality
    • Up to 32 words of global (cyclic I/O) data in each direction
    • Global Data Base Transaction, Point-to-Point commands, Read holding registers, Preset single register
    • Point-to-point parameter data (up to 125 words)
    • Onboard Node ID and Source ID switches
    • Modbus Plus baudrate 1 Mbit/s
    • 1x D-sub 9-pin female network connector

    POWERLINK Device/Slave interface

    POWERLINK Device/Slave settings can be made either via the built-in web interface, or by importing the provided .XDD file into engineering tool of the controlling PLC.

    • Max 254 bytes of Input and 254 bytes of Output data
    • Baud rate 100 Mbit/s Isochronous
    • Supports ring redundancy
    • POWERLINK uplink configuration via .XDD file
    • Dual port hub
    • Multiplexing
    • Poll Response Chaining
    • Supports segmented SDO transfer
    • Dual RJ-45 ports available simultaneously

    Technical specifications

    Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
    Weight 400g or 0,880 lbs
    Operating temperature -25 to +65 °C  or  -13 to +149 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
    Current consumption     max. 400mA (Typical 200mA)
    Enclosure material  Aluminium and plastic
    Installation position Vertical / Flat*
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard)
    I/O configuration via USB port with Anybus Configuration Manager software
    Certifications CE, CULUSRoHS
